Stone Edge Polisher

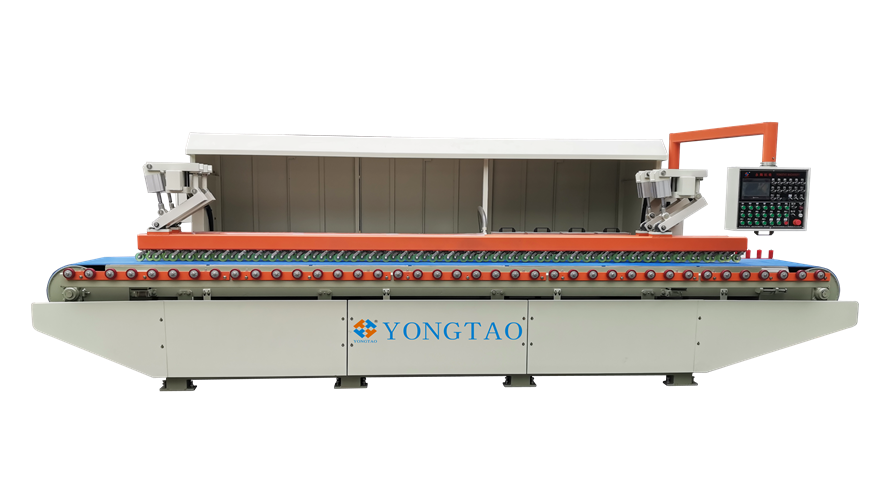

YCMP-2800 4+14 Quartz Countertop Flat Edge Polisher
Quartz countertop flat edge polisher can do flat edge polishing for marble,quartz,artificial stone etc stones. China Yongtao Machinery produce all kinds of stone polishing machines. For more information of quartz countertop flat edge polisher,please contact us.
PRODUCT DETAILS
YCMP-2800 4+14 is an advanced polisher for quartz and marble countertop flat edges from Yongtao. Structurally, this machine is paired with an R3 round edge polisher to meet the demand of customers who need combined techniques to process quartz or marble surfaces. Its unique performance lies in polishing flat edges and R3 round ones simultaneously. What’s more, YCMP-2800 4+14 can effectively grind off the excess edge of the material through its 4 squaring heads in front and perfectly smooth the surface using 14 flat polishing heads. Each of the machine’s motors relies on a special cylinder to drive the polishing head. It also enables you to control the pressure level and ensure the needed brightness. The more polishing heads are used, the better the processing effect. Generally, YCMP-2800 4+14 is designed to be simple to operate, providing you with enhanced stability and no hassle related to its maintenance.
More features of YCMP-2800 4+14 from Yongtao:
Processing materials: quartz, marble, and artificial stone
Function: accurate polishing of flat edges
Key characteristics:
Product introduction
YCMP-2800 4+14 Quartz Flat Edge Polisher for Combined Processing PerformanceYCMP-2800 4+14 is an advanced polisher for quartz and marble countertop flat edges from Yongtao. Structurally, this machine is paired with an R3 round edge polisher to meet the demand of customers who need combined techniques to process quartz or marble surfaces. Its unique performance lies in polishing flat edges and R3 round ones simultaneously. What’s more, YCMP-2800 4+14 can effectively grind off the excess edge of the material through its 4 squaring heads in front and perfectly smooth the surface using 14 flat polishing heads. Each of the machine’s motors relies on a special cylinder to drive the polishing head. It also enables you to control the pressure level and ensure the needed brightness. The more polishing heads are used, the better the processing effect. Generally, YCMP-2800 4+14 is designed to be simple to operate, providing you with enhanced stability and no hassle related to its maintenance.
Processing materials: quartz, marble, and artificial stone
Function: accurate polishing of flat edges
Key characteristics:
1.4 squaring heads adopt a fine adjustment structure and a water cooling system.
2.The machine has a stainless steel protection cover to prevent water and dust from getting into the motor.
3.Squaring heads use the diamond material, which greatly improves the processing speed.
4.Its press structure relies on an air cylinder to drive rollers to ensure slab stability on the conveyor belt.
5.The baffle can be adjusted to fit different width options of the slabs to be processed.
6.14 polishing heads use special cylinders to drive the grinding head up and down, which contributes to the polishing brightness.
7.Each polishing head has a snail lock polishing pad connected to the grinding cup and easy-to-replace slice on the base.
8.The conveyor belt is driven by an inverter to fit various material processing needs.
stone countertop edge polishing machine Parameter: 2.The machine has a stainless steel protection cover to prevent water and dust from getting into the motor.
3.Squaring heads use the diamond material, which greatly improves the processing speed.
4.Its press structure relies on an air cylinder to drive rollers to ensure slab stability on the conveyor belt.
5.The baffle can be adjusted to fit different width options of the slabs to be processed.
6.14 polishing heads use special cylinders to drive the grinding head up and down, which contributes to the polishing brightness.
7.Each polishing head has a snail lock polishing pad connected to the grinding cup and easy-to-replace slice on the base.
8.The conveyor belt is driven by an inverter to fit various material processing needs.
TECHNICAL DATA
Machine specifications
| Model No. | YCMP-2800/4+14 |
|---|---|
| Squaring head | 4pcs |
| Diameter of squaring head | Ø250mm |
| Motor power of squaring head | 4kw |
| Polishing head | 14pcs |
| Diameter of polishing head | Ø125mm |
| Motor power of polishing head | 0.75kw |
| Processing width | 200-3000mm |
| Processing thickness | 10-40mm |
| Processing speed | 0.5-2.5m/min |
| Total power | 28kw |
| Size of machine | 1900mm*6150mm*2000mm |
| Weight | 3500kg |
Technical data reflects the legacy product record. Confirm voltage, options and final configuration with the approved quotation.
